产品参数:
额定功率 |
100W |
150W |
200W |
250W |
电源 |
MEAN
WELL |
MEAN
WELL |
MEAN
WELL |
MEAN
WELL |
输入电压 |
AC100-277V /50-60Hz |
AC100-277V /50-60Hz |
AC100-277V /50-60Hz |
AC100-277V /50-60Hz |
功率因素 |
0.95 |
0.95 |
0.95 |
0.95 |
防护等级 |
IP65 |
IP65 |
IP65 |
IP65 |
使用寿命 |
≧50000H |
≧50000H |
≧50000H |
≧50000H |
光源 |
San’
an 3030 |
San’
an 3030 |
San’
an 3030 |
San’
an 3030 |
光源数量 |
112
pcs / 48 pcs |
168
pcs |
168
pcs |
280
pcs |
流明值 |
10000lm |
15000lm |
15000lm |
25000lm |
显色指数 |
≧75
Ra |
≧75
Ra |
≧75
Ra |
≧75
Ra |
发光角度 |
60°141*84° |
141*84° |
60°141*84° |
60°141*84° |
色温 |
2800-3000K |
2800-3000K |
2800-3000K |
2800-3000K |
3000-3200K |
3000-3200K |
3000-3200K |
3000-3200K |
4000-4500K |
4000-4500K |
4000-4500K |
4000-4500K |
5000-5500K |
5000-5500K |
5000-5500K |
5000-5500K |
6000-6500K |
6000-6500K |
6000-6500K |
6000-6500K |
电源线 |
3*0.75mm20.5M 橡胶线 |
3*0.75mm20.5M 橡胶线 |
3*0.75mm20.5M 橡胶线 |
3*0.75mm20.5M 橡胶线 |
外壳材质 |
铝+
PC |
铝+
PC |
铝+
PC |
铝+
PC |
电气安全等级 |
I类(class) |
I类(class) |
I类(class) |
I类(class) |
工作温度 |
-30~+60℃ |
-30~+60℃ |
-30~+60℃ |
-30~+60℃ |
LED结温 |
≤80℃ |
≤80℃ |
≤80℃ |
≤80℃ |
安全要求 |
CE |
CE |
CE |
CE |
环保指令 |
ROHS |
ROHS |
ROHS |
ROHS |

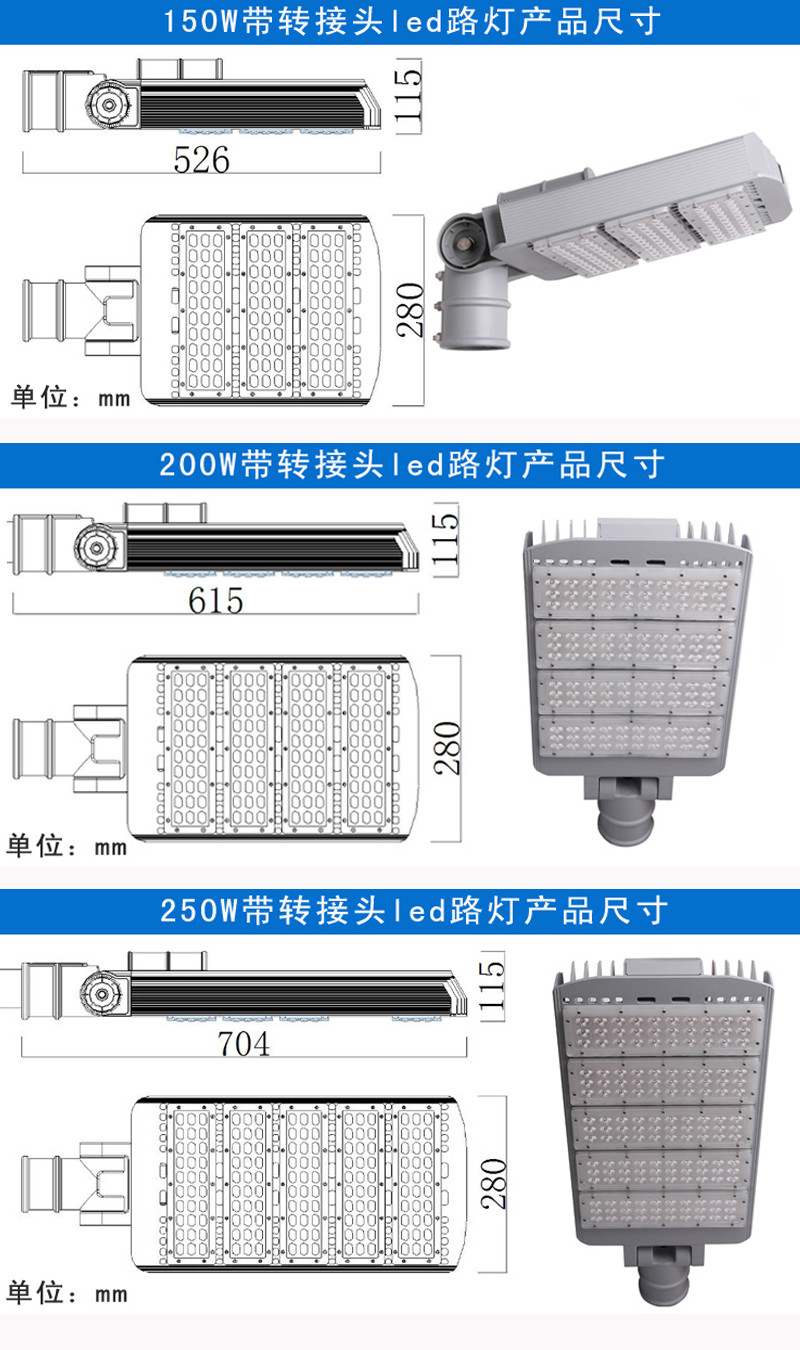

产品尺寸 |
L437*W280 *H115 mm |
L526*W280 *H115 mm |
L615*W280 *H115 mm |
L704*W280 *H115 mm |
净重 |
4.2 KG |
4.5 KG |
6 KG |
8 KG |
|
|
